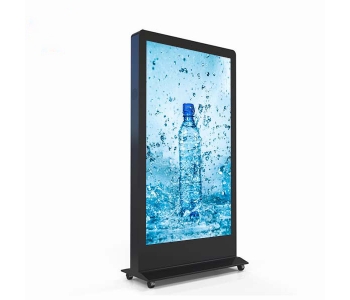

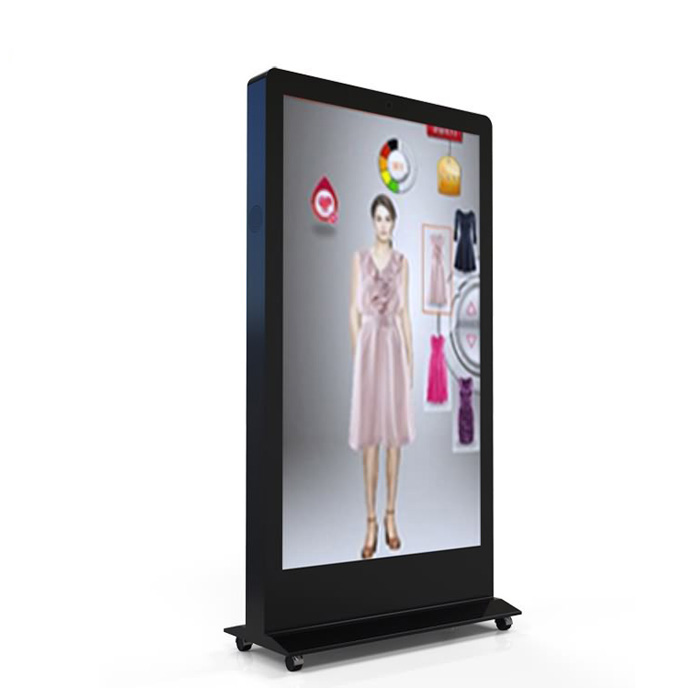

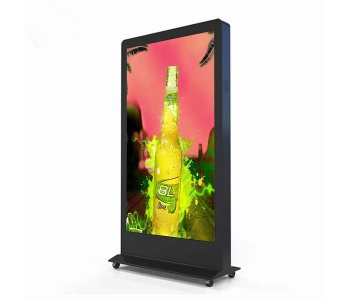

Model Number: MWE836 84 inch outdoor waterproof Digital Signage Display
- Model Number: MWE836
- Brand Name: Marvel
- Certification: CE FCC ROHS IP65
- Place of Origin: Shenzhen, China
- Application: Outdoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: Batch order 15-30 days
Provide 1-3 Years Warranty
84 inch outdoor waterproof Digital Signage Display
84 inch outdoor waterproof Digital Signage Display Product Description
Available Sizes: 19" ~86"
（Option）Can pass the IK10 anti-collision level test;
High visibility、anti-reflection;
（Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.
（Option）Polarzed sunglasses supporting
(Option)can supporting UV cut off and IR blocking.
Outdoor OMC system (outdoor maintenance and management cloud software system):
1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3.Touble shooting by software included.
4.Use softwae Remote Check key working performance by Group
5.Unnormal work alarm generation.
Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
Cloud service supporting:
1.CMS :http://inf.marveltechgroup.com
2.OMC:http://omc.marveltechgroup.com
3.Marvel can support to help Customer to setup their own server.
|
Model |
MWE836 PC Version |
MWE836 Android Version |
|
|
Screen |
Panel Brand |
Samsung & LG Full New 100% A+ Grade Brand Panel |
|
|
Panel size |
84" (19" ~86") |
||
|
Display size |
1860.48 × 1046.52 mm (H×V) |
||
|
Display ratio |
16:9 |
||
|
Resolution |
1080*1920 |
||
|
Viewing angle |
89/89/89/89 (Typ.)(CR≥10) |
||
|
Color |
16.7M |
||
|
Back light |
LED |
||
|
Brightness |
2500cd/m2 |
||
|
Contrast ratio |
3000:1 |
||
|
OS System |
main board:i5-3317U(optional) |
CPU:RK3288(optional) |
|
|
RAM:4G,SSD:128G(optional) |
RAM:2G,EMMC:8G(optional) |
||
|
Operation |
Windows 7(optional,win8,win8.1,win10) |
Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) |
|
|
Connection to network |
RJ45, WIFI (4G,optional) |
RJ45, WIFI (4G,optional) |
|
|
Touch Screen system
|
Touch screen |
touch foil, capacitive
|
touch foil, capacitive |
|
Touch ways |
finger,touch pen |
finger,touch pen |
|
|
Touch dots |
10dots (optional,20dots,40dots) |
10dots (optional,20dots,40dots) |
|
|
Durability |
More than 50 million touch |
More than 50 million touch |
|
|
Power |
Power |
1280W |
1280W |
|
Voltage |
AC100-240V 50/60HZ |
AC100-240V 50/60HZ |
|
|
Stability |
good |
good |
|
|
Instructions |
Interface |
VGA/HDMI/USB |
HDMI/USB/SD |
|
Working temperature |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling）
-30°C ~ 55°C(with fan cooling+heater)
|
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling）
-30°C ~ 55°C(with fan cooling+heater)
|
|
|
Material |
Aluminum alloy,tempered glass |
Aluminum alloy,tempered glass |
|
|
Surface |
Spraying,frosted aluminum |
Spraying,frosted aluminum |
|
|
Size |
Undetermined |
Undetermined |
|
|
Weight |
Undetermined |
Undetermined |
|
|
Body |
Shell |
Galvanized steel sheet. Thickness:2mm. |
|
|
Color |
Black , white , silver or customized colors |
||
|
Packing |
By carton, wooden case, flight case （optional） |
||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof
|
||
|
3G /4G Capability |
|||
|
Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor
|
|||
