Model Number: MWE763 Wall Mount Ip65 Outdoor LCD Digital Signage Advertising Screen
- Model Number: MWE763
- Brand Name: Marvel
- Certification: CE FCC ROHS
- Place of Origin: Shenzhen, China
- Application: Outdoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: Batch order 15-30 days
Provide 1-3 Years Warranty
All outdoor digital signage is equipped with an OMC system: when the outdoor advertising network fails,
the OMC system can accurately and easily identify abnormal machines for management.When you have an ad network,
it saves you time and costs.

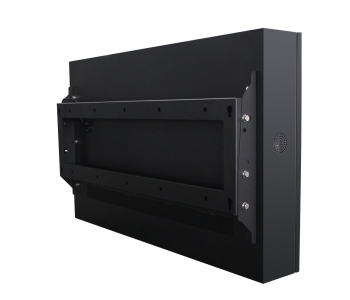

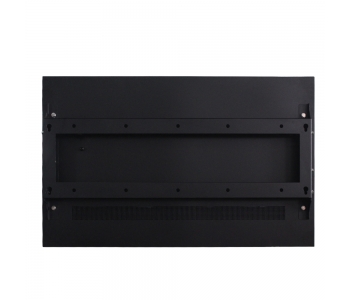

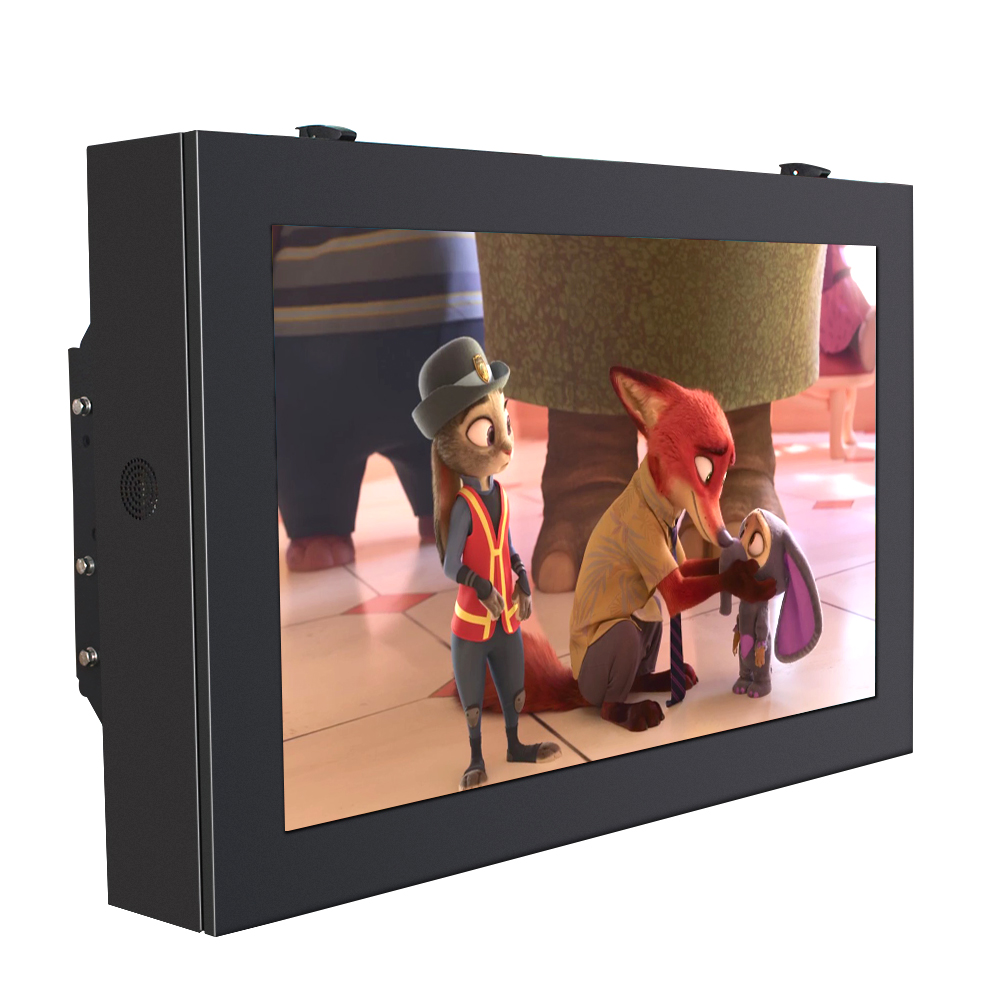

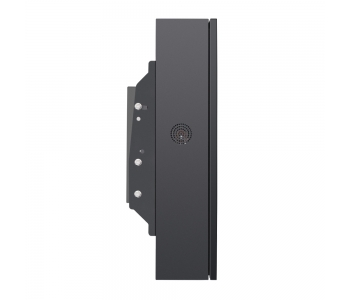

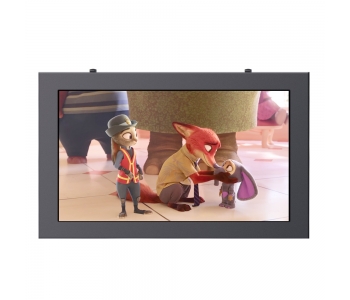

Wall Mount Ip65 Outdoor LCD Digital Signage
Detailed Product Description
Available Sizes: 19" ~86"
（Option）Can pass the IK10 anti-collision level test;
High visibility、anti-reflection;
（Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.
（Option）Polarzed sunglasses supporting
(Option)can supporting UV cut off and IR blocking.
Outdoor OMC system (outdoor maintenance and management cloud software system):
1.Every product inlcudes 10 kinds of sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor).
2. Problem and staus monitoring software included.
3.Touble shooting by software included.
4.Use softwae Remote Check key working performance by Group
5.Unnormal work alarm generation.
Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
Cloud service supporting:
1.CMS :http://inf.marveltechgroup.com
2.OMC:http://omc.marveltechgroup.com
3.Marvel can support to help Customer to setup their own server.
|
Model |
MWE763 PC Version |
MWE763Android Version |
|
|
Screen |
Panel Brand |
Samsung & LG Full New 100% A+ Grade Brand Panel |
|
|
Panel size |
42" （19'' ~86''） |
||
|
Display size |
927mm(V)×521mm(H) |
||
|
Display ratio |
16:9 |
||
|
Resolution |
1920*1080 |
||
|
Viewing angle |
178°/178°(H/V) |
||
|
Color |
16.7M |
||
|
Back light |
LED |
||
|
Brightness |
2500 cd/m2 |
||
|
Contrast ratio |
3000:1 |
||
|
OS System |
main board:i5-3317U(optional) |
CPU:RK3288(optional) |
|
|
RAM:4G,SSD:128G(optional) |
RAM:2G,EMMC:8G(optional) |
||
|
Operation |
Win7(optional,win8,win8.1,win10) |
Android 4.2(optional,Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) |
|
|
Connection to network |
RJ45, WIFI (4G,optional) |
RJ45, WIFI (4G,optional) |
|
|
Touch Screen system
|
Touch screen |
touch foil, capacitive
|
touch foil, capacitive
|
|
Touch ways |
finger,touch pen |
finger,touch pen |
|
|
Touch dots |
10dots (optional,20dots,40dots) |
10dots (optional,20dots,40dots) |
|
|
Durability |
More than 50 million touch |
More than 50 million touch |
|
|
Power |
Power |
330W |
330W |
|
Voltage |
AC100-240V 50/60HZ |
AC100-240V 50/60HZ |
|
|
Stability |
good |
good |
|
|
Instructions |
Interface |
VGA/HDMI/USB |
HDMI/USB/SD |
|
Working temperature |
-30°C -- 60°C(with air condition）
-10°C -- 55°C(with air follow exchange）
-30°C -- 55°C(with air follow exchange+heater)
|
-30°C -- 60°C(with air condition）
-10°C -- 55°C(with air follow exchange）
-30°C -- 55°C(with air follow exchange+heater)
|
|
|
Material |
Aluminum alloy,tempered glass |
Aluminum alloy,tempered glass |
|
|
Surface |
Spraying,frosted aluminum |
Spraying,frosted aluminum |
|
|
Size |
Undetermined |
Undetermined |
|
|
Weight |
Undetermined |
Undetermined |
|
|
Body |
Shell |
Galvanized steel sheet. Thickness:2mm. |
|
|
Color |
Black , white , silver or customized colors |
||
|
Packing |
By carton, wooden case, flight case （optional） |
||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof
|
||
|
3G/4G Capability |
|||
|
Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor
|
|||
Marvel Outdoor Digital Signs is built by Marvel professional engineering team, using high-quality all-metal casing with outdoor professional powder spraying, the cabinet is hard and firm, Marvel Outdoor Advertising Screen is using Marvel personally to create a outdoor digital signage, its brightness can be 1000-5000 , With unique polarized solar technology, built in multi ambient sensors,backlight brightness can be automatically adjusted and manually remotely adjusted, it adapts to various harsh environmental climate changes, such as bus stations, subways, tourist areas, street navigation digital signage, whether it is windy, rainy, or snowy ,under Marvel's intelligent OMC escort, the outdoor digital signage can easily respond to various environmental climate changes, and users can easily grasp the real-time running status of the device at any time, even if the device fails Realize remote fault diagnosis and remote maintenance through the intelligent cloud maintenance platform. On the other hand, the product has a super high cost performance. Every outdoor device can be configured with our intelligent cloud maintenance platform and cloud publishing content management system for free. We have not only technical advantages but also cost advantages. For the details,pls inquire our web: www.marveltechgroup.com
