Model Number: MWE915 Outdoor High-light LCD Advertising Displays Player
- Model Number: MWE915
- Brand Name: MWE
- Certification: CE FCC ROHS IP65
- Place of Origin: Shenzhen, China
- Application: Outdoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: By Sea or Air / Door to Door
Provide 1-3 Years Warranty
You or your clients can choose from the following revenue models:
Advertising Fees: Charging advertisers for ad play time and space. Pricing depends on factors like ad duration, frequency, time slot, and location.
Partnerships: Forming relationships with brands or stores to promote their products/services for a fee.
Content Sales: Selling custom advertising content to clients who can't create their own.
Data Collection and Analysis: Collecting and selling viewer data, and using it to optimize ad effectiveness.
Sponsorship: Finding sponsors for the machine or specific ad slots.
What we can guarantee is that the advertising machine has a 99.99% operating rate and excellent after-sales service to help you or your clients save costs.

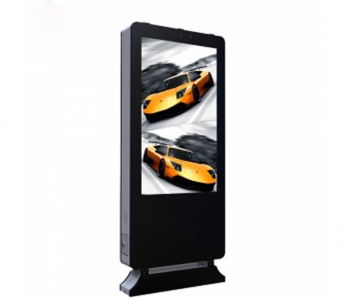

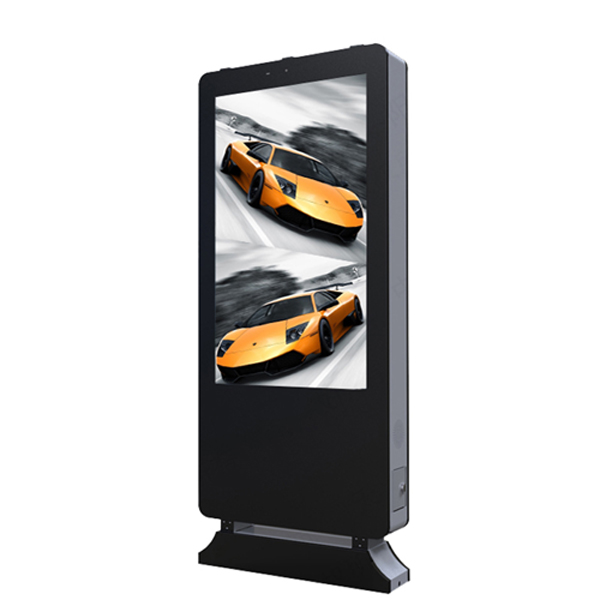

High-light Outdoor LCD Displays Advertising Player
Outdoor LCD Displays Product Description
Available Sizes: 19" ~86"
（Option）Can pass the IK10 anti-collision level test;
High visibility、anti-reflection;
（Option）Supporting marvel outdoor LCD maintenance cloud（OMC）control.
（Option）Polarzed sunglasses supporting
(Option)can supporting UV cut off and IR blocking.
Control interface supporting:
1. RS232 Marve provide API and instruction protocol.
2. TCP/IP Marvel provide technical supporting.
Cloud service supporting:
1.CMS :http://inf.marveltechgroup.com
2.OMC:http://omc.marveltechgroup.com
3.Marvel can support to help Customer to setup their own server.
|
Model |
MWE915 PC Version |
MWE915 Android Version |
|
|
Screen |
Panel Brand |
Samsung & LG Full New 100% A+ Grade Brand Panel |
|
|
Panel size |
46" (19" ~86") |
||
|
Display size |
1018.08(V)×572.67(H) mm |
||
|
Display ratio |
16:9 |
||
|
Resolution |
1080*1920 |
||
|
Viewing angle |
89/89/89/89 (Typ.)(CR≥10) |
||
|
Color |
16.7M |
||
|
Backlight |
LED |
||
|
Brightness |
2500 cd/m2 (optional) |
||
|
Contrast ratio |
3000:1 |
||
|
OS System |
main board:i5-3317U(optional) |
CPU:RK3288(optional) |
|
|
RAM:4G,SSD:128G(optional) |
RAM:2G,EMMC:8G(optional) |
||
|
Operation |
Windows 7(optional,win8,win8.1,win10) |
Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2) |
|
|
Connection to network |
RJ45, WIFI (4G,optional) |
RJ45, WIFI (4G,optional) |
|
|
Touch Screen system
|
Touch screen |
touch foil, capacitive
|
touch foil, capacitive
|
|
Touch ways |
finger,touch pen |
finger,touch pen |
|
|
Touch dots |
10dots (optional,20dots,40dots) |
10dots (optional,20dots,40dots) |
|
|
Durability |
More than 50 million touch |
More than 50 million touch |
|
|
Power |
Power |
450W |
450W |
|
Voltage |
AC100-240V 50/60HZ |
AC100-240V 50/60HZ |
|
|
Stability |
good |
good |
|
|
Instructions |
Interface |
VGA/HDMI/USB |
HDMI/USB/SD |
|
Working temperature |
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling）
-30°C ~ 55°C(with fan cooling+heater)
|
-30°C ~ 60°C(with air conditioner）
-10°C ~55°C(with fan cooling）
-30°C ~ 55°C(with fan cooling+heater)
|
|
|
Material |
Aluminum alloy,tempered glass |
Aluminum alloy,tempered glass |
|
|
Surface |
Spraying,frosted aluminum |
Spraying,frosted aluminum |
|
|
Size |
Undetermined |
Undetermined |
|
|
Weight |
Undetermined |
Undetermined |
|
|
Body |
Shell |
Galvanized steel sheet. Thickness:2mm. |
|
|
Color |
Black , white , silver or customized colors |
||
|
Packing |
By carton, wooden case, flight case （optional） |
||
|
Optional Functions |
Anti-dazzle、Anti-graffiti、Anti-glare,Anti-refection、
Anti-UV、Anti-IR、Water-proof、dust-proof、vandal proof
|
||
|
3G/4G Capability |
|||
|
Human sensor、Light sensor、Screen sensor、Humidity sensor、Temperature sensor、
Vibration sensor、Safty monitoring sensor、Ponding sensor、Smog sensor、Collision sensor、Tilt sensor
|
|||
Related Products: lcd advertising screen digital signage and displays
Q: Are you a factory or a trading company?
A: We are an OEM/ODM factory. Marvel Technology, also known as MWE, is one of the largest manufacturers of LCD products, serving both the Chinese and global markets.
Q: What payment methods does your company accept?
A: We accept most payment methods, primarily T/T, L/C, Western Union, PayPal, and Alibaba Trade Assurance.
Q: How long is the warranty period for your products?
A: We standardly offer a one-year full warranty. However, customers can choose to extend the warranty to two or three years.
Q: What brand of screen do you use?
A: We use brand-new, original Grade A+ LCD panels.
Q: When will you make the delivery?
A: We can deliver within 5–25 working days, depending on the specific models and the quantity of your order.
Q: What shipping options do you provide?
A: We offer various delivery options: express, air, sea, and land freight. We can also coordinate with your own forwarder.
Q: I would like a sample; can you provide one?
A: We are happy to provide samples for testing and qualification. All samples must be paid for before shipment, and the sample price is slightly higher than mass production pricing. Once a bulk order is placed, we will refund the sample cost difference. You can purchase samples directly via T/T, Western Union, or PayPal.
Q: I bought this LCD display; how do I use and install it?
A: To help customers maximize the use of our products, we have recorded and uploaded video tutorials. Additionally, we have an international technical support team of engineers who are proficient in English.
