Parameter |
Specification |
|

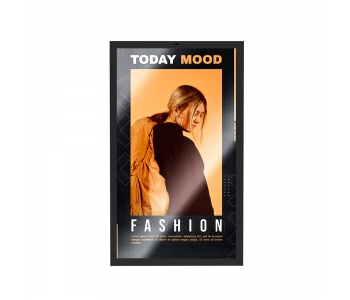

Model Number |
MWE897 |
|
LCD Panel Size |
43 inch -86 inch |
|
Native Resolution |
1920 x 1080 |
|
Backlight Type |
Direct-lit LED |
|
Brightness |
2500 nits |
|
Light Lifetime |
50000 hours |
|
Contrast Ratio |
1200 : 1 (Typ.) |
|
Display Color |
16.7M (8-bit) |
|
Viewing Angle |
89/89/89/89 (Typ.) |
|
Power Input Voltage |
AC 100-240V, 50/60Hz |
|
Rated Voltage |
AC 110V / 220V |
|
Max Power Consumption |
160W |
|
Bezel Width (T/B/L/R) |
48 / 48 / 48 / 48 mm |
|
Cabinet Color |
Grey (RAL7016) |
|

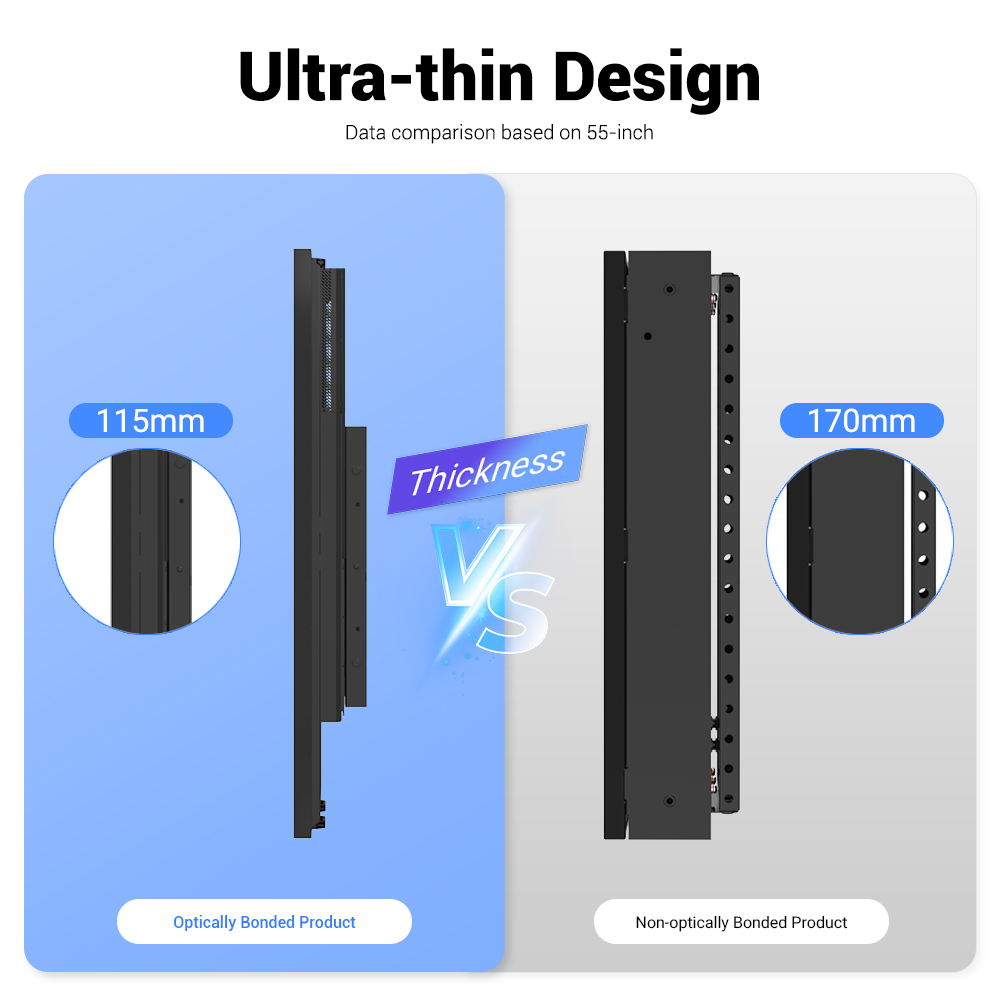

Outline Dimensions |
626 x 1038 x 115 mm |
|
Net Weight |
40 kg |
|
Orientation |
Portrait / Landscape |
|
Tempered Glass |
Anti-Glare (AG) |
|

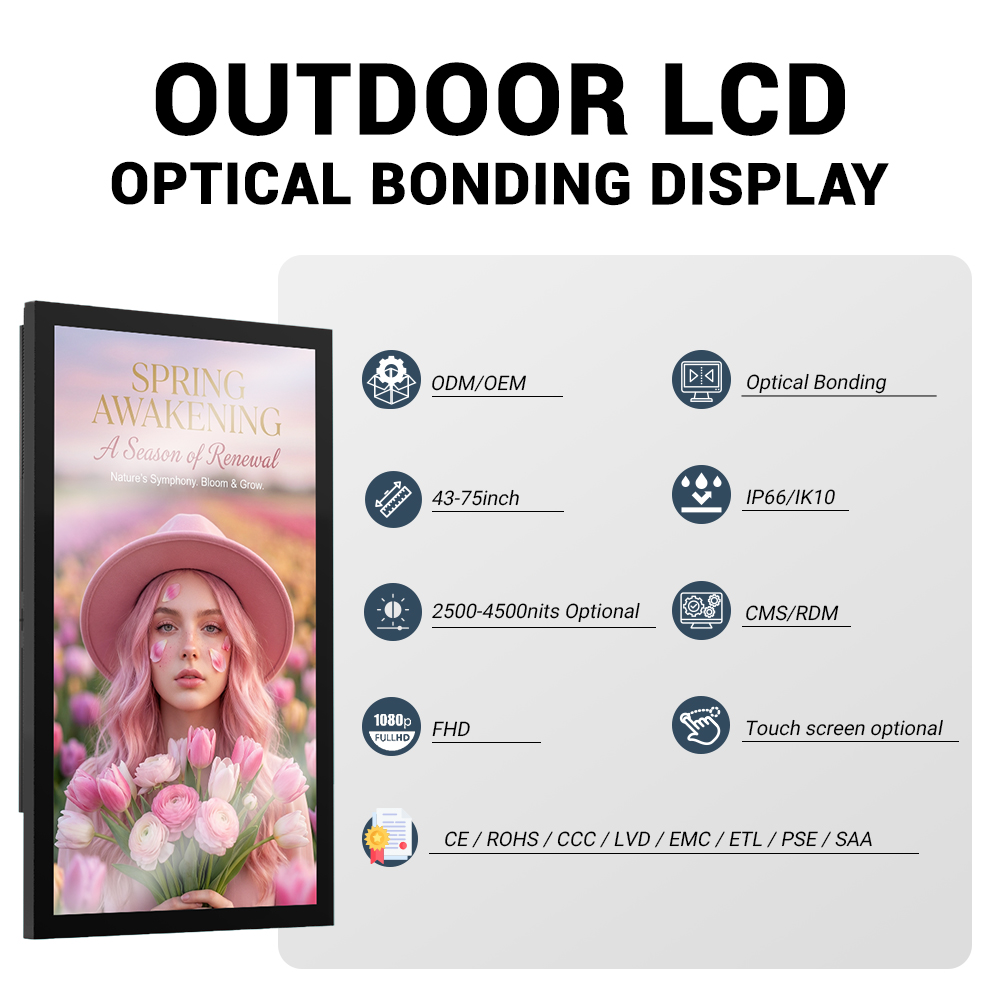

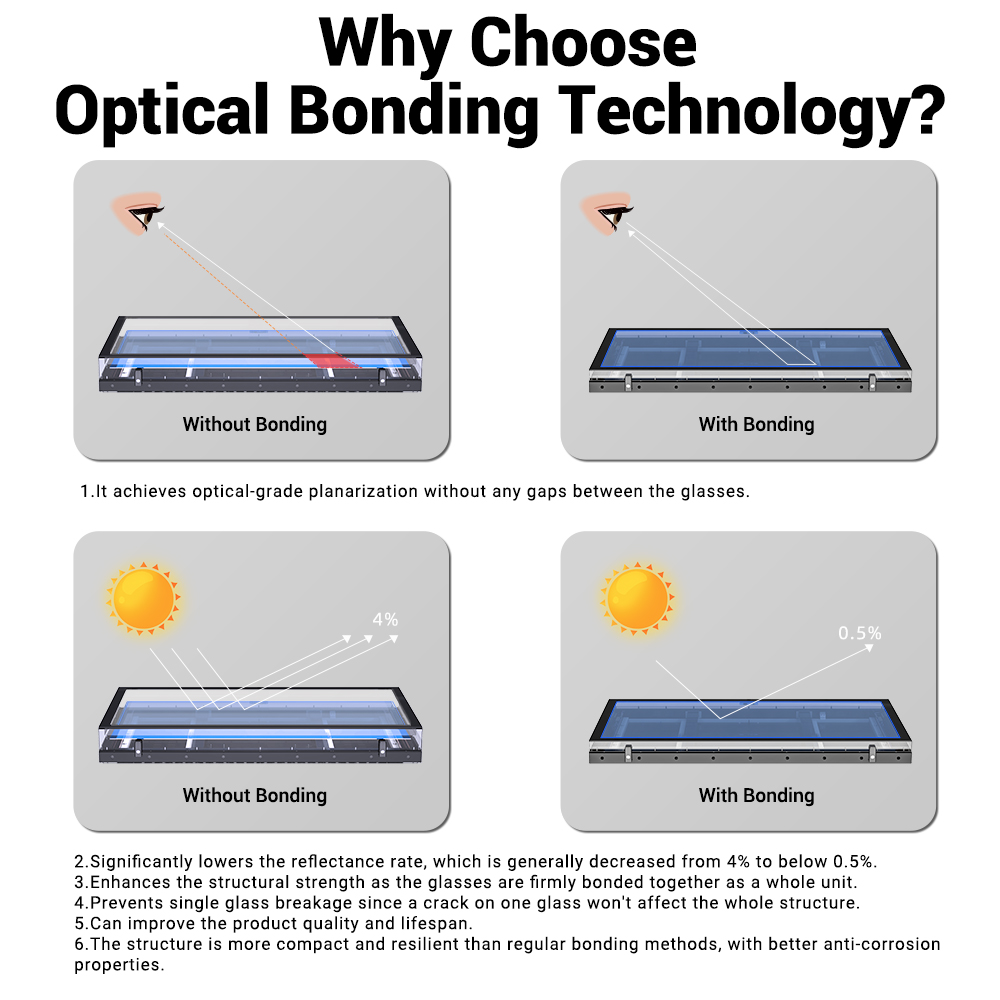

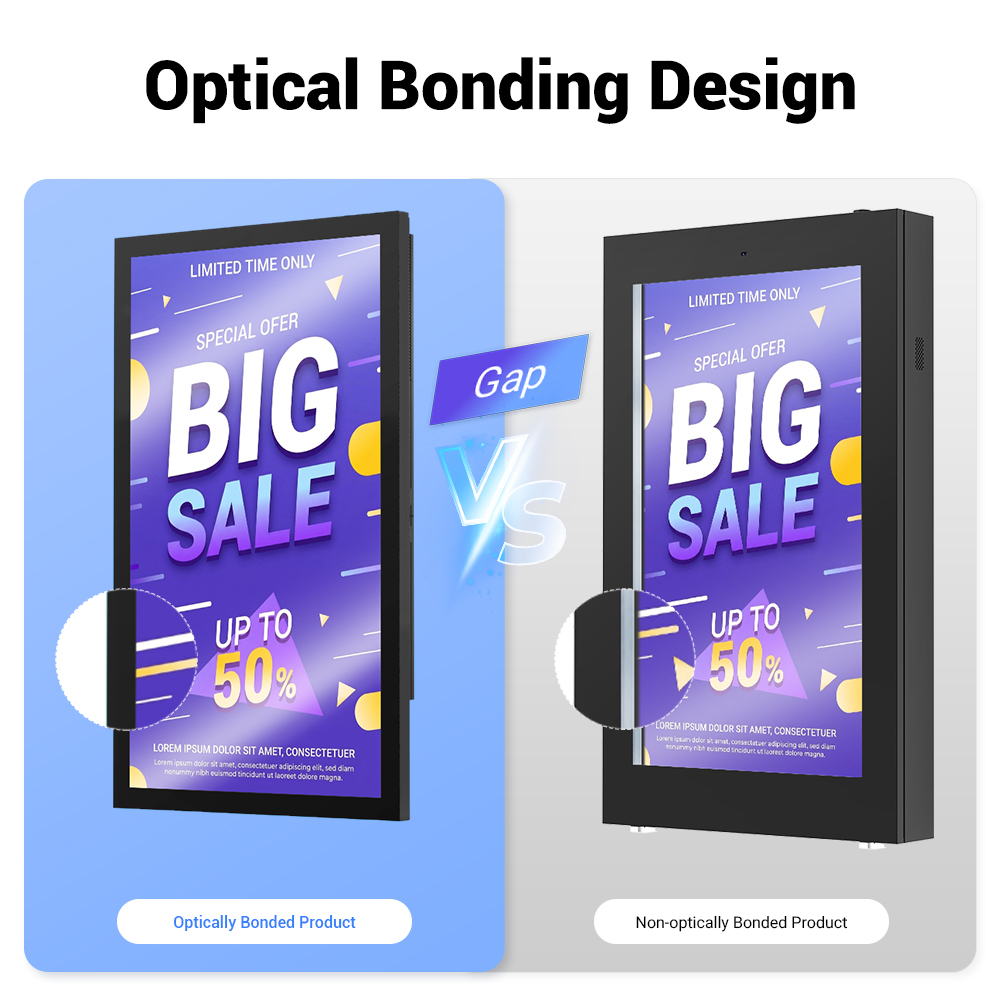

Bonding Process |
Optical Bonding |
|
CPU |
RK3568, Quad-core |
|
RAM |
2GB |
|
ROM |
32GB |
|
System Version |
Android 11 |
|
Language |
English (Default) |
|
Wi-Fi |
2.4G / 5G Dual-band Wi-Fi |
|
4G Support |
Optional / Supported |
|
Input Ports |
HDMI x1, USB x2, RJ45 x1, Power supply port x1 |
|
IR Control |
Supported |
|
Light Sensor |
Supported (Auto-brightness) |
|
Speaker |
8Ω 5W x 2 |
|
Operating Temperature |
-20℃ ~ 45℃ |
|
Storage Temperature |
-25℃ ~ 60℃ |
|
Humidity |
10% ~ 100% RH (Non-condensing) |
|

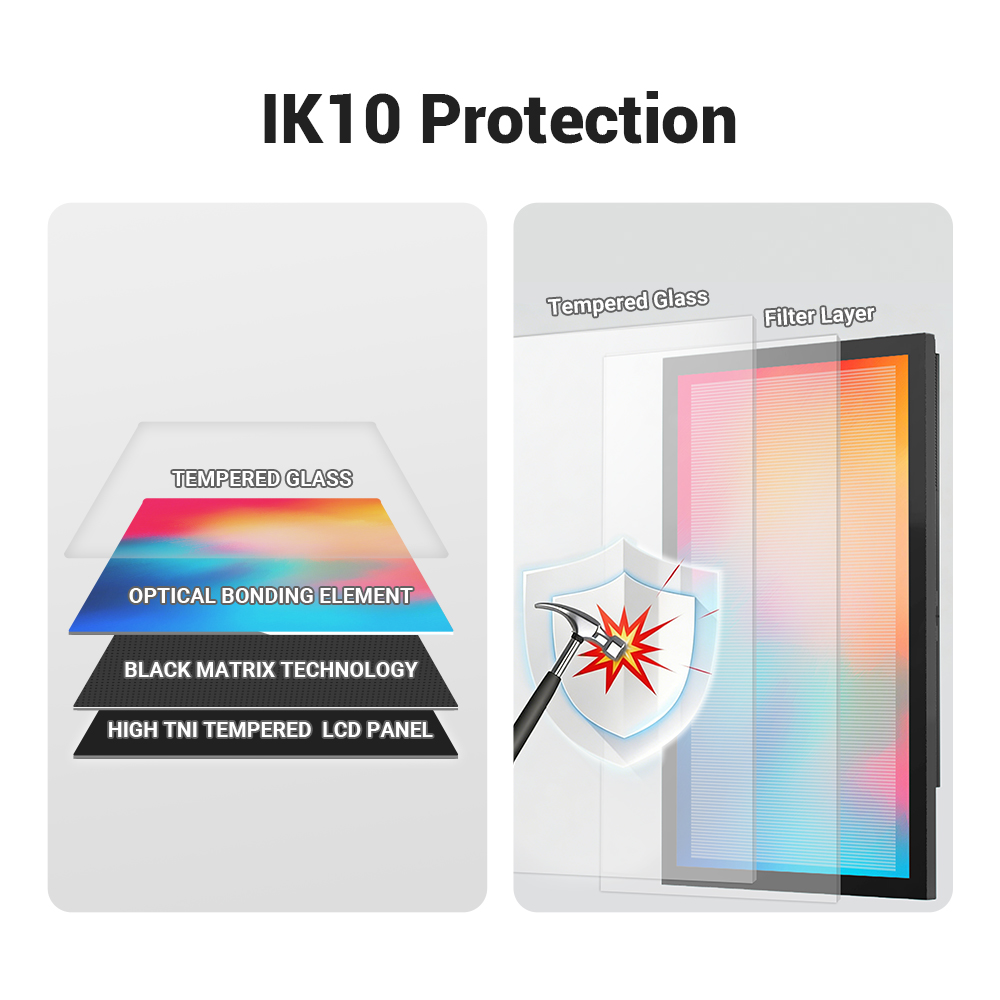

Protection Rating |
IP66 / IK10 |
|
OMC Functions |
Monitoring: Smoke, Humidity, Temperature, Wind Speed |
