MWE-C1 Ultra-thin indoor wall-mounted advertising display · 32" / 43" / 55" / 65" / 75"
- Model Number: MWE-C1
- Brand Name: MWE
- Certification: CE FCC ROHS ISO
- Place of Origin: China
- Application: Indoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: Batch order 15-30 days
Provide 1-3 Years Warranty
Ultra-thin indoor wall-mounted advertising display · 32" / 43" / 55" / 65" / 75"
1. Product Introduction
The MWE-T28 Series is an ultra-thin indoor wall-mounted digital signage display with a 90%+ sRGB high color gamut panel, available in 32", 43", 55", 65" and 75", for ads that look as vivid as they sell.
Standard introduction
Engineered for retail, beauty, food and hospitality interiors, the MWE-T28 Series wall-mounted digital signage display makes advertising look as good as it sells. Its 90%+ sRGB high color gamut panel — versus roughly 70% on ordinary commercial screens — produces richer, more saturated color and restores brand colors accurately, so food, beauty and product imagery appear noticeably closer to real life. A 28 mm bezel-less body with a flat back and hidden cable routing keeps the installation clean from every angle, while Android 11 playback and USB, mobile-app and cloud publishing make content updates effortless.
Extended introduction
The MWE-T28 Series is the ultra-thin answer to a common retail problem: beautiful campaign creative that looks dull on ordinary screens. Built around a 90%+ sRGB high color gamut panel, the display reproduces brand colors with far greater accuracy than standard ~70% sRGB signage — a difference that matters most in cosmetics, fashion, jewellery, food & beverage and other color-critical categories. The 28 mm full-screen chassis shows no black borders, and its flat rear panel tucks cables into a recessed channel, so the screen reads as a clean architectural element rather than an appliance.
Choose from five sizes: 32" and 43" in Full HD 1920×1080 for counters and close viewing, or 55", 65" and 75" in 4K 3840×2160 for feature walls and video-wall style playback. Every model runs Android 11 and can be updated by USB in seconds, from a phone via the LEDArt app, or remotely across a whole network through the Xiaohui cloud platform. As an indoor digital signage manufacturer, MWE (Marvel Technology) supplies the T28 Series with OEM and ODM support for branding, configuration and packaging.
2. Key Selling Points
1. 90%+ sRGB High Color Gamut — color your competitors can't match
The panel covers more than 90% of the sRGB color gamut, versus roughly 70% on ordinary commercial screens, so advertising looks richer and more saturated and brand colors are restored accurately. This is the single biggest reason food, beauty and retail campaigns read as more premium and convert better on this panel.
2. 28 mm Ultra-Thin, Bezel-Less Body
The whole machine is only 28 mm deep, with a full-screen face that shows no black borders. Combined with a flat back panel and a hidden cable routing channel, it delivers a clean, presentable look from every angle once wall-mounted.
Evidence: spec sheet — 28 mm outline thickness; feature list items 5 / 6 / 8.
3. Five Sizes, Full HD to 4K (32"–75")
Match the screen to the space: 32" and 43" Full HD 1920×1080 for counters, shelves and close viewing, or 55", 65" and 75" 4K 3840×2160 for feature walls and large-format playback. A 43" wood-frame variant is also available for design-led interiors.
Evidence: product spec sheet — size options and per-size resolution; feature list items 2 / 3.
4. Three Ways to Publish Content — USB, Mobile App & Cloud
Plug in a USB drive for automatic plug-and-play playback, edit and publish from a phone with the LEDArt app (Android / iOS), or manage many screens remotely from a computer through the Xiaohui cloud platform. A gray-scale release system also supports staged, batched content rollouts.
5. HDMI OUT Daisy-Chain & HDMI IN External Source
The 32" and 43" models provide an HDMI OUT port for multi-screen daisy-chaining, while the 55", 65" and 75" models offer HDMI IN to receive an external player or set-top box — flexible for both stand-alone and video-wall style deployments.
Evidence: feature list item 9.
6. Standard VESA Mount — Portrait or Landscape
Mounts to the wall with standard VESA hole spacing and any matching bracket; it supports both portrait and landscape orientation, so it fits shelf edges, pillars, feature walls and reception backdrops with equal ease.
Evidence: feature list item 4; spec sheet orientation "Portrait / Landscape".
7. 500-nit Anti-Glare Panel with 178° Viewing
A bright 500-nit panel (the 43" is also offered at 700 nit for brighter spaces) with anti-glare tempered glass and a 178° viewing angle keeps content clearly readable from every direction, even in well-lit interiors.
Evidence: spec sheet — brightness, Anti-Glare tempered glass, 178° viewing angle.
8. Android 11 Engine with Configurable Storage
Every model runs Android 11 on an integrated player board with selectable RAM / ROM configurations — for example 2+32G on the 32" and 43" models and 4+32G on the 55", 65" and 75" models — plus 2.4G WiFi, RJ45 Ethernet, USB, TF card and a headphone jack.
9. Built for Long-Hour Commercial Operation
The LED backlight is rated for 50,000 hours with a 1200:1 contrast ratio and 16.7M colors, in a 0–50 °C indoor operating range (IP30, humidity ≤80%). The unit is covered by a 1-year warranty, with 2-, 3- and 5-year extended warranty plans available.
---
3. Specifications at a Glance
Display
- Color gamut: 90%+ sRGB
- Brightness: 500 nit (43" high-bright version 700 nit)
- Contrast: 1200:1 (typical)
- Colors: 16.7M (8-bit)
- Viewing angle: 178° (L/R/U/D)
- Glass: anti-glare tempered, frame-bonded
- Backlight: side-lit LED, 50,000 h rated life
System & Connectivity
- OS: Android 11
- Player board: RK3566-class (32"/43"), RK3576-class (55"/65"/75")
- Storage: 2+32G standard on 32"/43"; 4+32G on 55"/65"/75"; higher options available
- Wireless: WiFi 2.4G
- Ports: HDMI ×1, USB ×2, RJ45 ×1, TF card ×1, 3.5 mm audio ×1
- Audio: 2 × 4 Ω 2 W speakers
Mechanical
- Thickness: 28 mm
- Bezel: 20.5 mm (25 mm on 65")
- Colour: black
- Orientation: portrait / landscape
- Mounting: standard VESA wall-mount bracket
- Power: AC 100–240 V, 50/60 Hz
Environment & Content
- Operating temp: 0–50 ℃ | Storage temp: −10 to +60 ℃ | Humidity: ≤80%
- Protection: IP30 (indoor only)
- Publishing: USB · LEDArt app · Xiaohui cloud
- Extra: gray-scale release system
By screen size
- 32" — 1920×1080 Full HD · 500 nit · 2+32G · ≤70 W · 738.4×432.85×28 mm · 8.5 kg
- 43" — 1920×1080 Full HD · 500/700 nit · 2+32G · ≤80 W · 981.18×569.42×28 mm · 15.2 kg · wood-frame variant available
- 55" — 3840×2160 4K UHD · 500 nit · 4+32G · ≤130 W · 1249.6×720.4×28 mm · 26.2 kg
- 65" — 3840×2160 4K UHD · 500 nit · 4+32G · ≤130 W · 1477.48×852.52×28 mm · 35.3 kg
- 75" — 3840×2160 4K UHD · 500 nit · 4+32G · package 1835×1158×185 mm
Notes before publishing
- Colour gamut is quoted as 90%+ sRGB; keep "sRGB" rather than "NTSC" unless the panel report specifies otherwise.
- Chipset naming differs slightly between source files — state "Android 11 player board" on the live page and confirm the exact SoC against the current order specification.
- 43" brightness appears as both 500 and 700 nit across sheets — present 700 nit as an option.
- 75" packaging and weight are not yet fully listed; confirm before publishing full mechanical specs.
- Certification is currently listed as "none" — do not state CE / FCC / RoHS until certificates are on file.
---
4. Best-Fit Applications

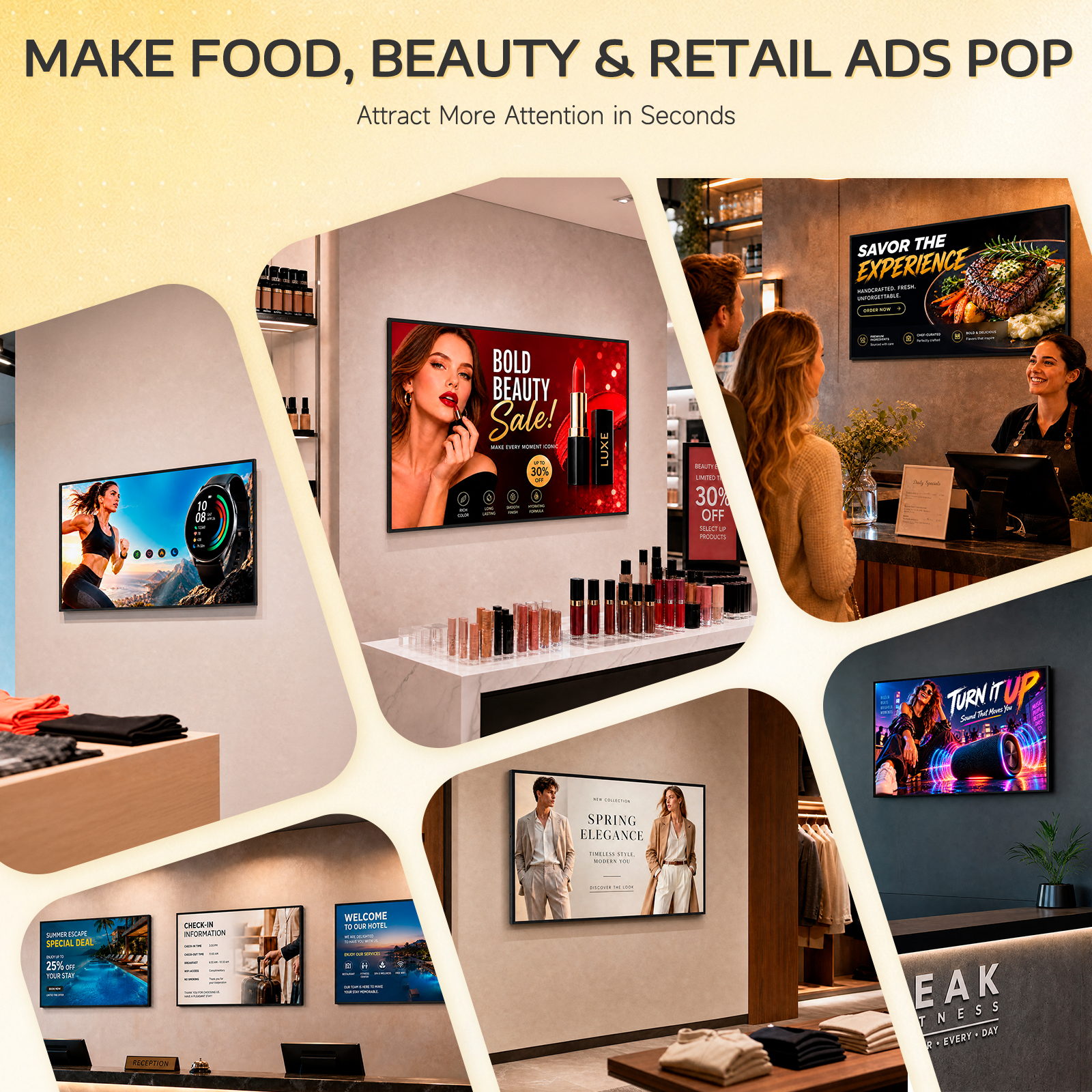

Retail & Fashion — storefront walls, window-side pillars, fitting-room corridors, brand zones, promotional loops.
Health & Beauty — cosmetics and skincare counters, salon/spa/clinic waiting areas, colour-critical showcases.
Food & Beverage — menu walls and digital menu boards, café and restaurant entrances, order-counter upsell loops.
Hospitality, Leisure & Corporate — hotel and lift lobbies, gyms, showrooms, reception areas, exhibition booths.

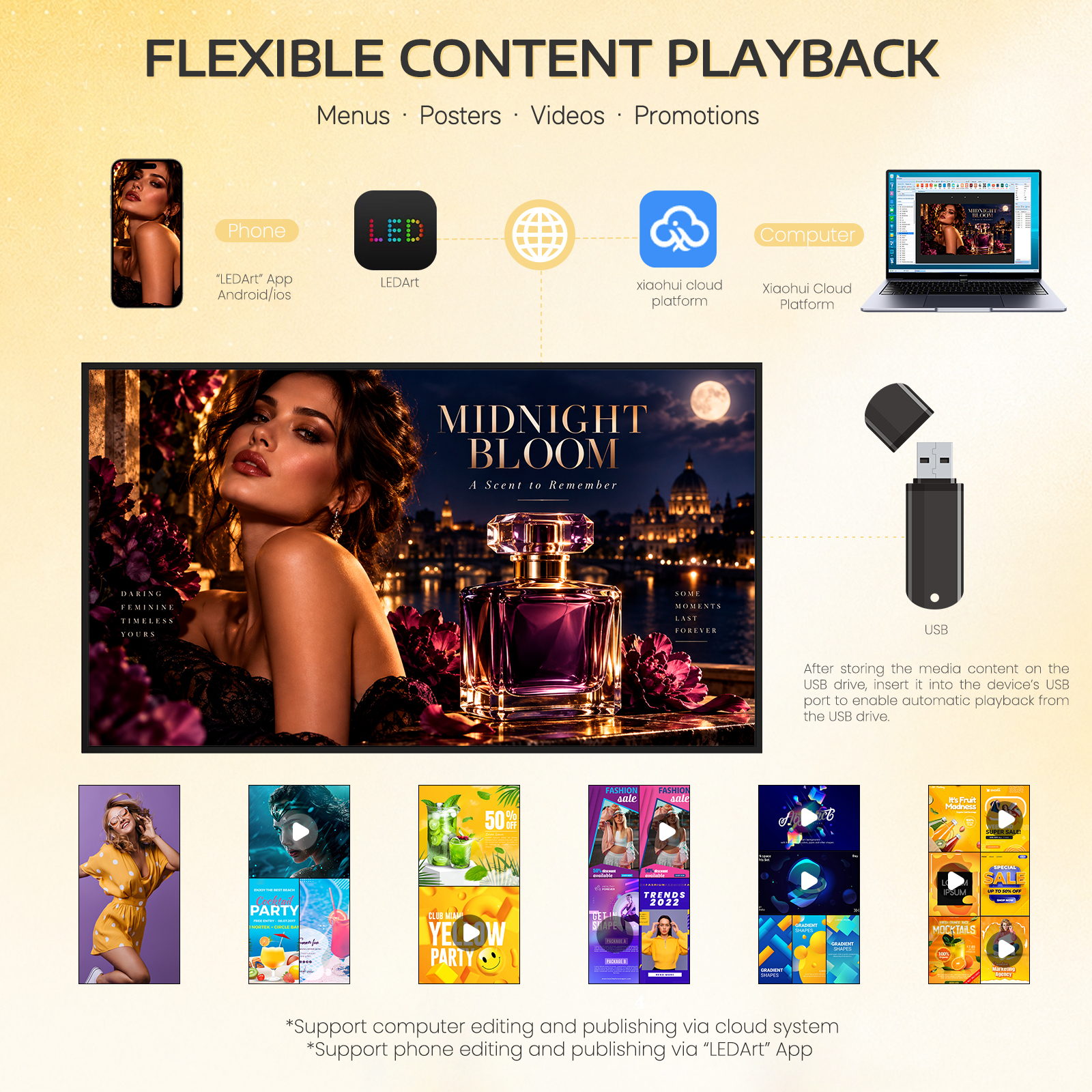

5. Content Management & Publishing
- USB plug-and-play— save media to a USB drive and insert it for automatic playback. Best for single stores and quick edits.
- LEDArt mobile app — edit and publish content from a phone (Android / iOS) without a computer.
- Xiaohui cloud platform — edit and push content remotely to many screens from a computer; ideal for multi-store centralised management.
- Gray-scale release system — roll out new content in stages for controlled, low-risk network updates.
6. Product FAQ
Q1. What is the MWE high color gamut wall-mounted digital signage display?
It is an ultra-thin indoor wall-mounted advertising display available in 32, 43, 55, 65 and 75-inch sizes. It combines a 90%+ sRGB high color gamut panel, a 28 mm bezel-less body and an Android 11 player to deliver vivid, true-to-life advertising in retail, beauty, food and hospitality spaces.
Q2. How does the 90%+ color gamut benefit my advertising content?
With over 90% sRGB coverage versus roughly 70% on ordinary screens, the display renders richer, more saturated colors and restores brand colors accurately. Food, beauty and retail ads therefore look closer to real life and attract attention faster.
Q3. What screen sizes and resolutions are available?
32, 43, 55, 65 and 75-inch models. The 32 and 43-inch versions use Full HD 1920×1080 panels; the 55, 65 and 75-inch versions deliver 4K 3840×2160.
Q4. How bright is the screen, and is it suitable for bright indoor environments?
500-nit brightness for clear indoor visibility, with a 700-nit version of the 43-inch model available for brighter spaces. Anti-glare tempered glass and a 178-degree viewing angle keep content readable from wide angles.
Q5. How thin is the display and what does it look like on the wall?
The whole machine is only 28 mm thick with a bezel-less full screen and no black borders. The flat back includes a hidden cable routing channel, so the wall-mounted look stays clean from every angle.

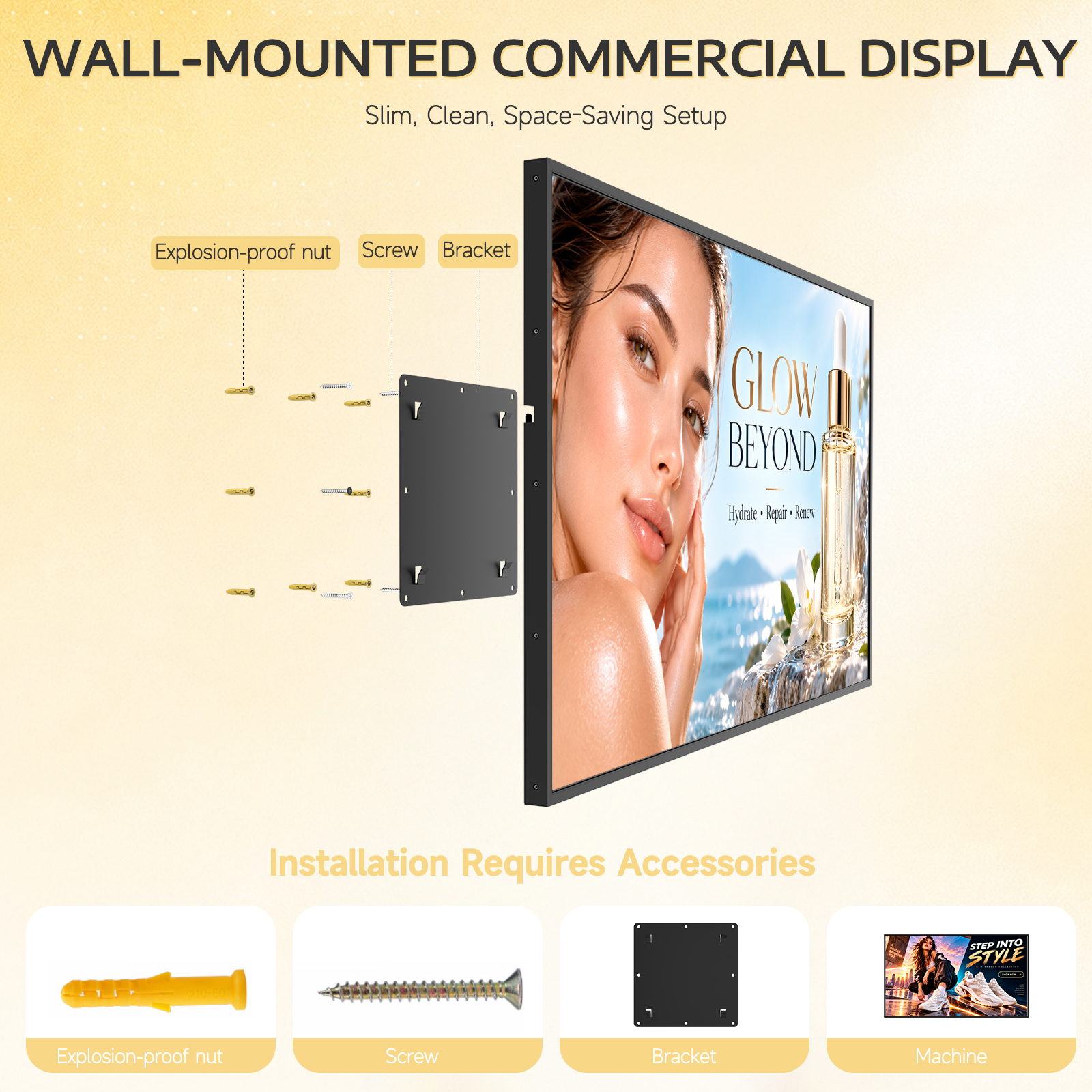

Q6. How is the display installed on the wall?
It uses a wall-mount bracket with standard VESA hole spacing (bracket, screws and explosion-proof nuts required). It supports portrait and landscape orientation, and any standard bracket with matching VESA holes can enable hanging or other mounting styles.
Q7. How do I update and publish advertising content?
USB plug-and-play playback; phone editing via the LEDArt app (Android / iOS); or remote multi-screen publishing from a computer via the Xiaohui cloud platform. A gray-scale release system is supported for staged rollouts.
Q8. Does the display support HDMI input or output?
Yes. 32 and 43-inch models have HDMI OUT for multi-screen daisy-chaining; 55, 65 and 75-inch models provide HDMI IN to receive external sources such as media players or set-top boxes.
Q9. What connectivity ports does the display include?
One HDMI, two USB, an RJ45 Ethernet port, a TF card slot and a headphone jack, plus 2.4G WiFi and dual 4-ohm 2W speakers.
Q10. What operating system and storage configurations are available?
Android 11 with multiple RAM/ROM configurations, such as 2+32G on 32/43-inch and 4+32G on 55/65/75-inch models.
Q11. Which business scenarios is this wall-mounted signage designed for?
Food, beauty and retail advertising: restaurants, beauty counters, fashion stores, hotel lobbies, gyms and reception areas. The high color gamut and slim bezel-less look suit brand visuals and promotional campaigns.
Q12. Is the panel durable for long-hour commercial operation?
The LED backlight is rated for 50,000 hours; the panel renders 16.7M colors at 1200:1 contrast, with anti-glare tempered glass, and operates reliably in 0–50 ℃ indoor environments.
Q13. Can the display be used outdoors?
No. This is an indoor display with an IP30 rating, for enclosed interiors with humidity up to 80%. For outdoor use, choose a dedicated outdoor signage model.
Q14. What warranty is provided with the display?
A 1-year warranty under normal use, with 2-, 3- and 5-year extended warranty plans available.
