Samsung-46inch-3.5mm 700 nit Interactive Video Wall
- Model Number: MPJ46SHX39
- Brand Name: Marvel
- Certification: CE FCC ROHS
- Place of Origin: Shenzhen, China
- Application: Indoor
- Input Voltage: AC100~240V 50 /60 HZ
- Packaging: Bubble bag+packing foam+carton+wooden case
- Delivery Detail: Batch order 15-30 days
Provide 1-3 Years Warranty

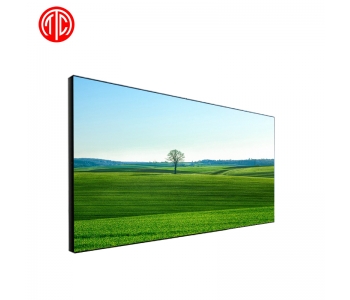

46 Inch Interactive Video Wall with 700 nit Narrow Bezel 3.5mm
46 Inch Interactive Video Wall Product Description
Installation Types: Front repair video wall bracket, Wall Mounted, Floor standing, Cabinet floor satanding
|
Panel |
|
|
Panel Size |
46 inch Samsung LCD Screen (with narrow bezel 3.9mm) |
| Splice bezel | 3.5mm |
|
Aspect Ratio |
16:9 |
|
Max Resolution Support |
1920×1080(H×V) |
|
Color |
8Bit,16.7M |
|
Brightness (nits) |
700 |
|
Contrast ratio |
3500:1: |
|
Visual Angle (H/V) |
89/89/89/89 (Typ.)(CR≥10) |
|
Response Time |
8ms |
|
Life(hrs) |
>60,000(hrs) |
|
Input and output |
|
|
DVI |
1 |
|
HDMI |
1 |
|
D-15 RGB Input(VGA) |
1 |
|
YUV/YPbPR |
1(3xBNC) |
|
S-(YC) |
1(2xBNC) |
|
Composite Video Input/(AV) |
3(3xBNC) |
|
Composite Video Output |
2(2xBNC) |
|
AUDIO INPUT |
1 |
|
Split Screen |
Support Picture in Picture(PIP/POP/PAP) |
|
Power |
|
|
Power Supply |
AC100V~240V |
|
Maximum Power Consumption |
230W |
|
Standby Power Consumption |
<=3W |
|
Working Temperature |
0°C~50°C |
|
Working Humidity |
20%-80% |
|
Dimension |
1023.98(H)×578.57(V) ×79.5(D) mm |
|
Video Wall Processor Controller |
|
|
Model No. |
MV-P817W |
|
DVI in |
1 |
|
HDMI in |
1 |
|
VGA in |
1 |
|
Composite Video Input/(AV) |
1(BNC) |
|
Composite Video Output |
1(BNC) |
|
Control signal input and loop out |
RS232(RJ45-8) |
|
Split Screen |
Sport Picture in Picture (PIP/POP) |
|
power consumption |
Max 300W,according to different Screen models |
|
Dimension |
338×295×60(mm) |
|
Weight |
3.5-4.0kg |
Related Products: digital signage video wall solutions
Q: Are you a factory or a trading company?
A: We are an OEM/ODM factory. Marvel Technology, also known as MWE, is one of the largest manufacturers of LCD products, serving both the Chinese and global markets.
Q: What payment methods does your company accept?
A: We accept most payment methods, primarily T/T, L/C, Western Union, PayPal, and Alibaba Trade Assurance.
Q: How long is the warranty period for your products?
A: We standardly offer a one-year full warranty. However, customers can choose to extend the warranty to two or three years.
Q: What brand of screen do you use?
A: We use brand-new, original Grade A+ LCD panels.
Q: When will you make the delivery?
A: We can deliver within 5–25 working days, depending on the specific models and the quantity of your order.
Q: What shipping options do you provide?
A: We offer various delivery options: express, air, sea, and land freight. We can also coordinate with your own forwarder.
Q: I would like a sample; can you provide one?
A: We are happy to provide samples for testing and qualification. All samples must be paid for before shipment, and the sample price is slightly higher than mass production pricing. Once a bulk order is placed, we will refund the sample cost difference. You can purchase samples directly via T/T, Western Union, or PayPal.
Q: I bought this LCD display; how do I use and install it?
A: To help customers maximize the use of our products, we have recorded and uploaded video tutorials. Additionally, we have an international technical support team of engineers who are proficient in English.
